Our Products Range
We are an eminent organization, engaged in Sourcing and supplying a wide range of Products to meet or customer need, We Are specialists in Global Sourcing and Trading as well as Solution providing.
PTFE TUBE & SLEEVS (UL & RoHS Grade)
Single Wall Heat Shrinkable Tube and Sleeves (10 KV, 20 KV, 35 KV) UL grade
Dual Wall High Heat Shrinkable Sleeve (2:1, 3:1 & 4:1 Shrinkable Ratio) UL grade
Thin Wall Heat Shrink Tube (2:1, 3:1 & 4:1 Shrinkable Ratio) UL grade
Electrical Insulator
Heat Shrinkable Insulation, Connectors UL grade
Adhesive Lined insulating Caps
Silicon Rubber Tube UL grade
Fiber glass Sleeve UL grade
Fiberglass non Adhesive Tape
Nylon cable ties, Heat Stabilize tie, special purpose ties, metal tooth ties, automotive ties, stainless steel ties, SS band and buckles and wiring accessories. UL & RoHS complied
Packing Solution (All kind of Adhesive Packing Tape, BOPP Tape, All Kind of Industrial Tape.
Abrasive Grinding Wheel, Cutting Wheel.
Anti-Theft Pedestals and concealed systems, AM Deactivators & Labels, RF Tags and labels.

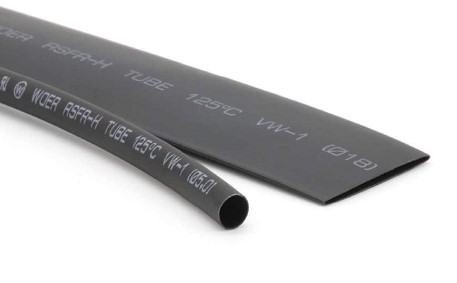

Heat Shrink Tube
We Provide, UL grade Single wall, Dual Wall, Thin Wall Heat Shrink Sleeve, we source globally to fulfill customer demand and specification
Single Wall Heat Shrink Sleeve

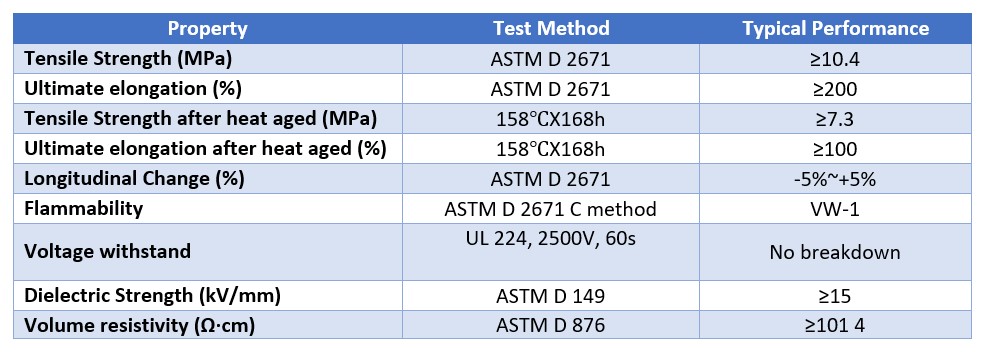

Property | Test Method | Typical Performance |
|---|---|---|
Tensile Strength (MPa) | ASTM D 2671 | ≥10.4 |
Ultimate elongation (%) | ASTM D 2671 | ≥200 |
Tensile Strength after heat aged (MPa) | 158℃X168h | ≥7.3 |
Ultimate elongation after heat aged (%) | 158℃X168h | ≥100 |
Longitudinal Change (%) | ASTM D 2671 | -5%~+5% |
Flammability | ASTM D 2671 C method | VW-1 |
Voltage withstand | UL 224, 2500V, 60s | No breakdown |
Dielectric Strength (kV/mm) | ASTM D 149 | ≥15 |
Volume resistivity (Ω·cm) | ASTM D 876 | ≥101 4 |
Features
- Flexible
- Flame retardant
- Continuous operating temperature:-55℃~125℃
- Fully shrink temperature:≥125℃
- RoHS compliant
Technical Data

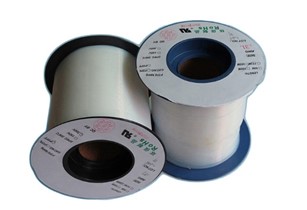

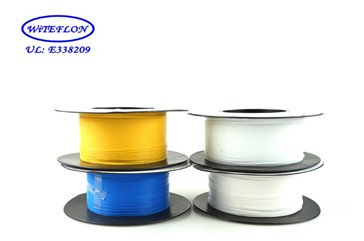

PTFE Tube
PTFE tube is manufactured by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.
We are supplier of UL grade PTFE Tube, It widely used in mechanical industries, electronic and electric
products, motor vehicle, aerospace, chemical industry, communications etc.:
Characteristics
- Excellent anti-corrosion (antiacid/alkaline/chemical/oil);
- High voltage resistance (26KV/mm)
Specification

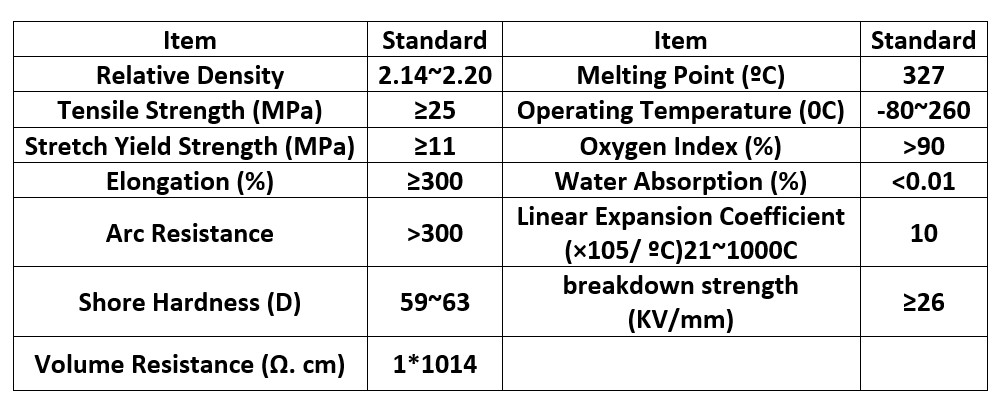

Item | Standard |
|---|---|
Relative Density | 2.14~2.20 |
Tensile Strength (MPa) | ≥25 |
Stretch Yield Strength (MPa) | ≥11 |
Elongation (%) | ≥300 |
Arc Resistance | >300 |
Shore Hardness (D) | 59~63 |
Volume Resistance (Ω. cm) | 1*1014 |
Melting Point (ºC) | 327 |
Operating Temperature (0C) | -80~260 |
Oxygen Index (%) | >90 |
Water Absorption (%) | <0.01 |
Linear Expansion Coefficient
(×105/ ºC)21~1000C
| 10 |
breakdown strength (KV/mm) | ≥26 |
